Computar MLH-10X 1/2" 13-130mm (10X) F5.6 Manual Zoom (Aangeboden)

door A. Ouwehand , Amersfoort, 12-03-2025, 15:35 (237 dagen geleden) @ A. Ouwehand

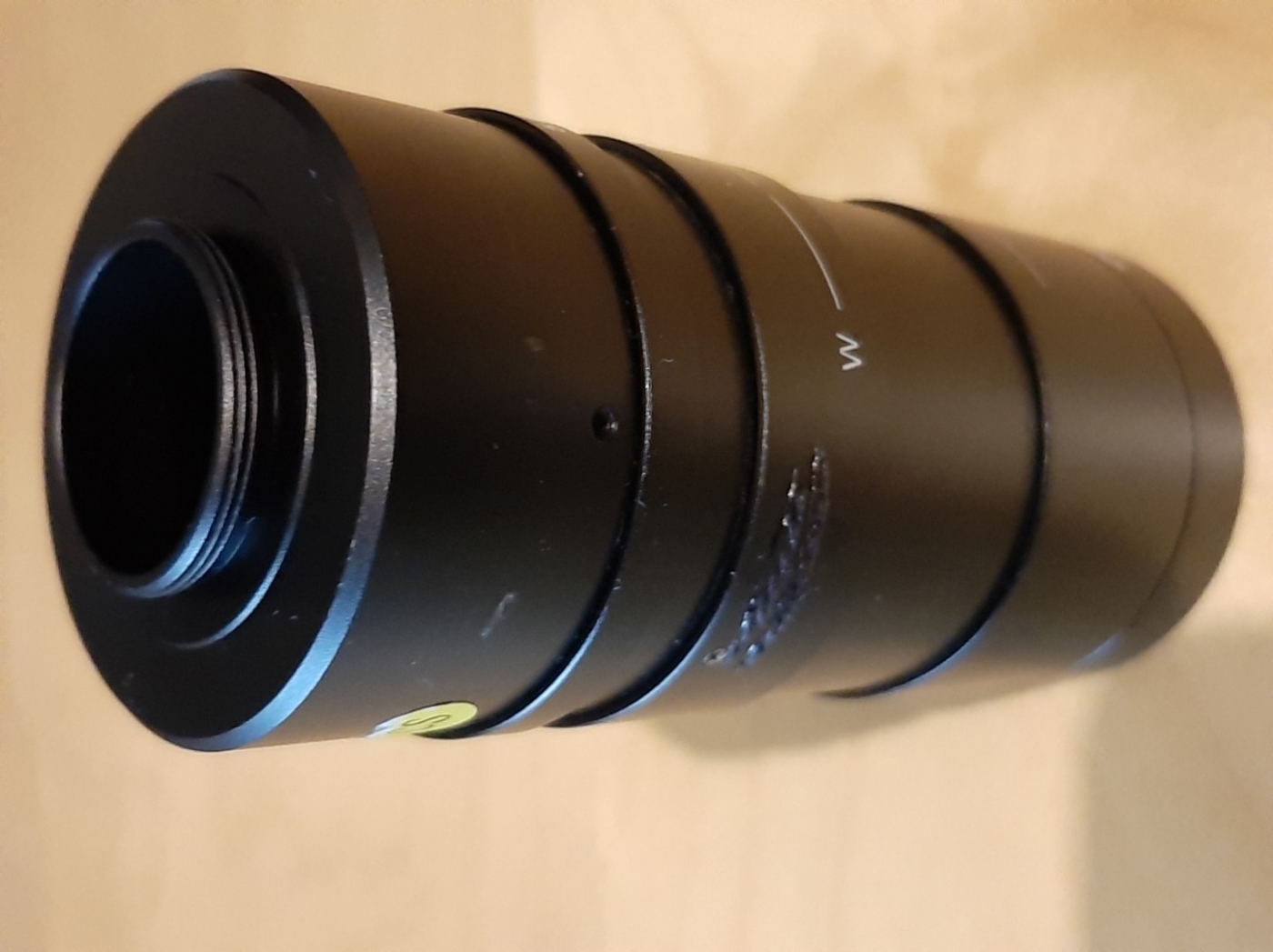

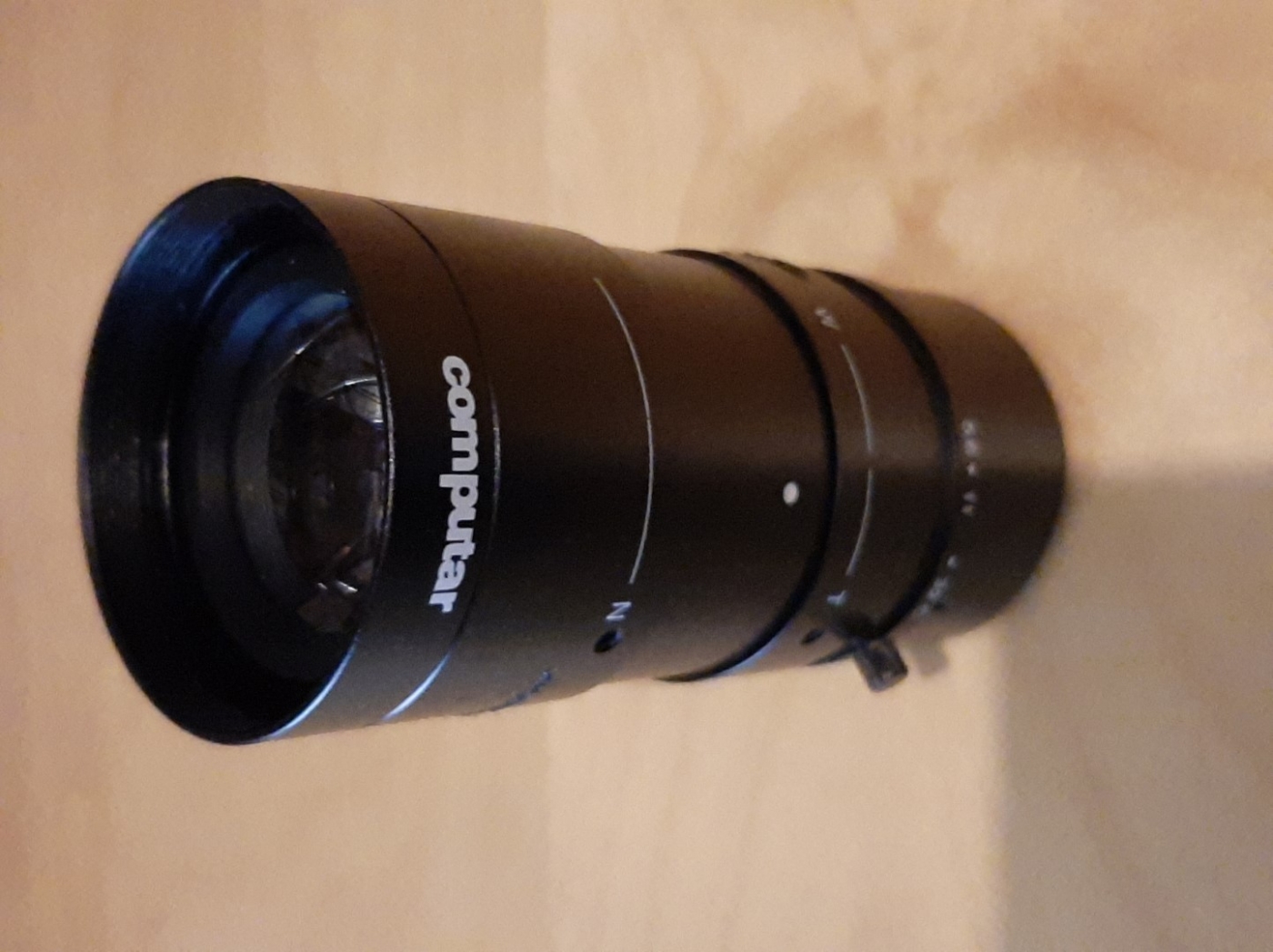

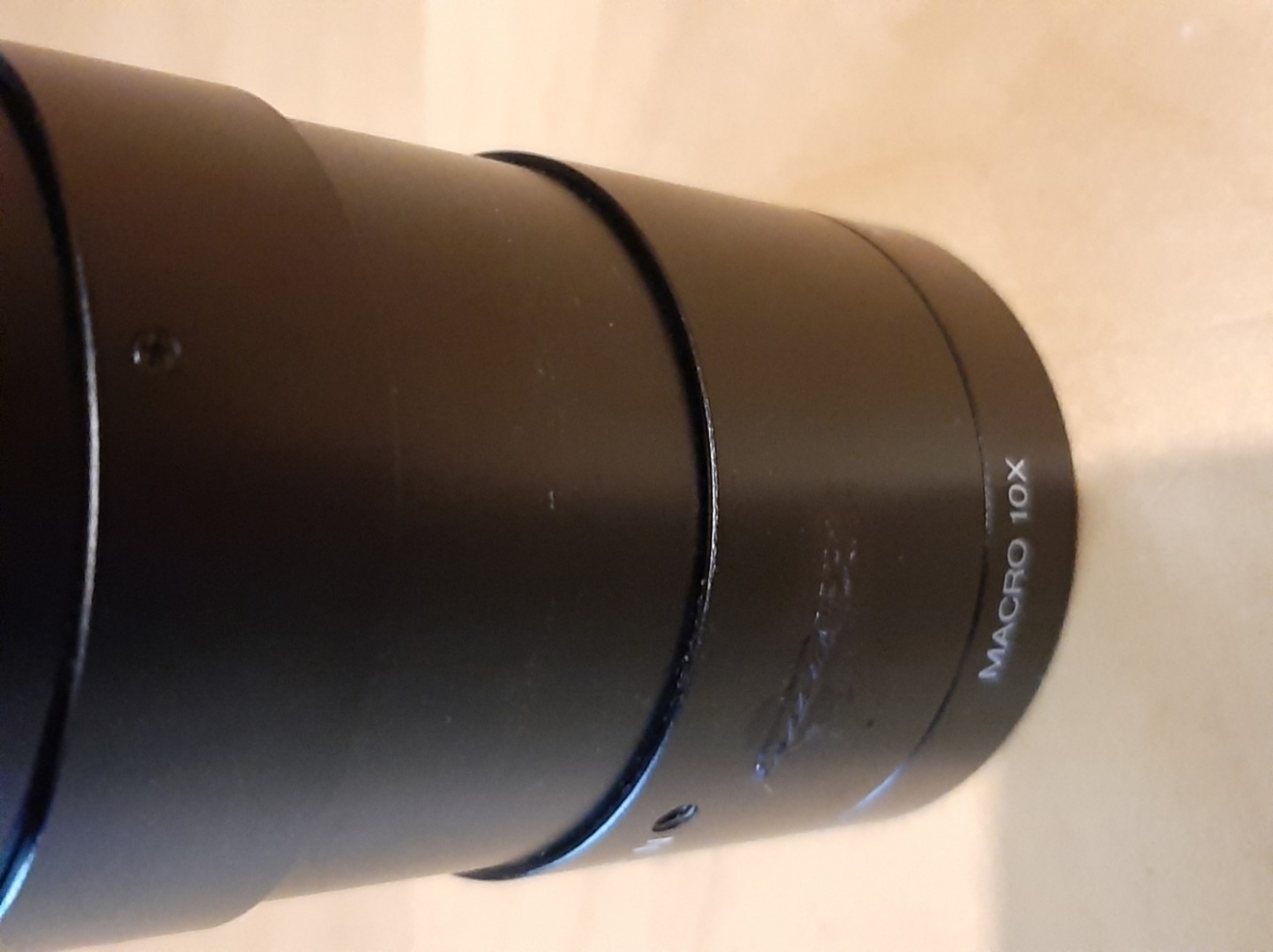

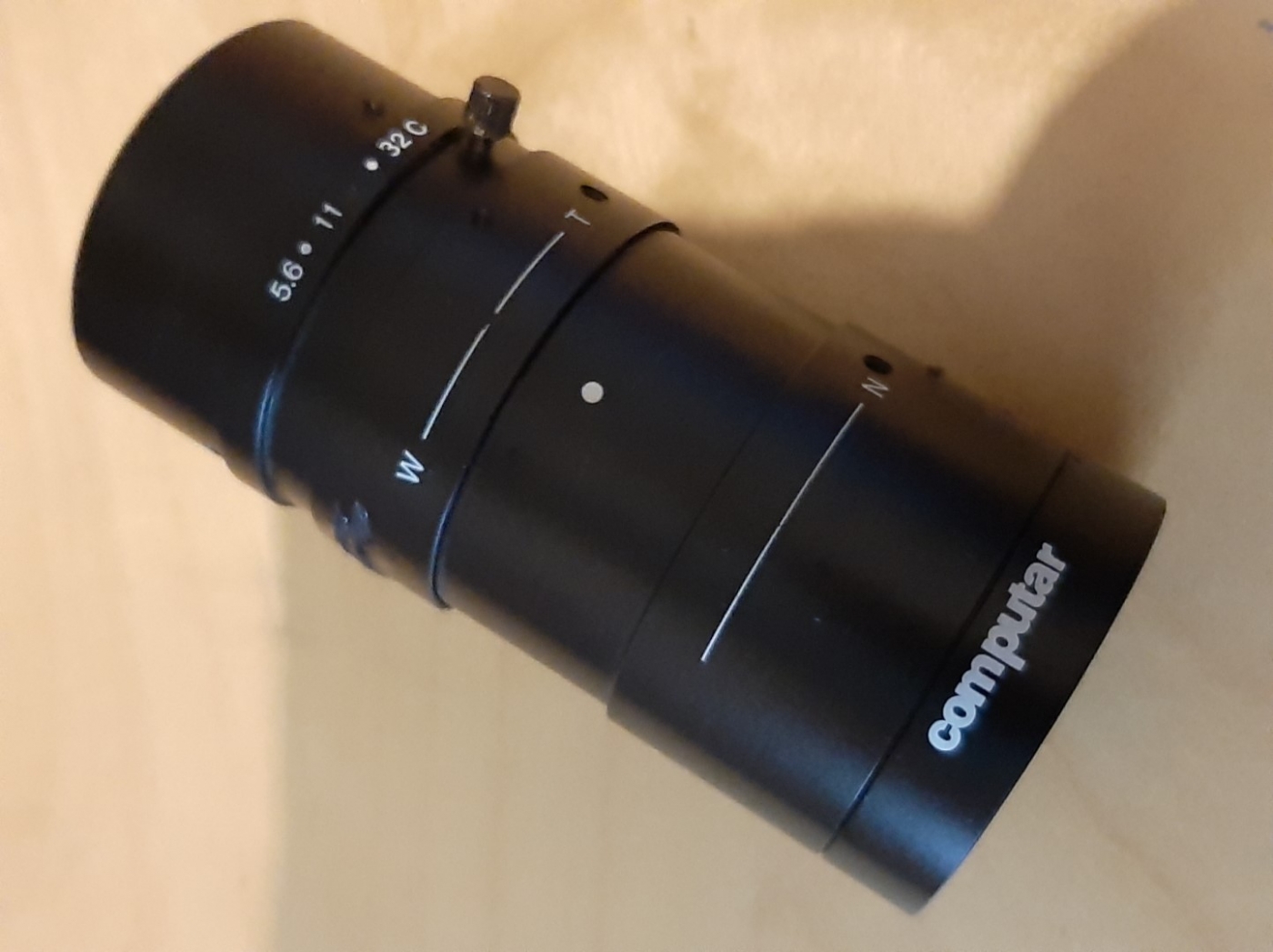

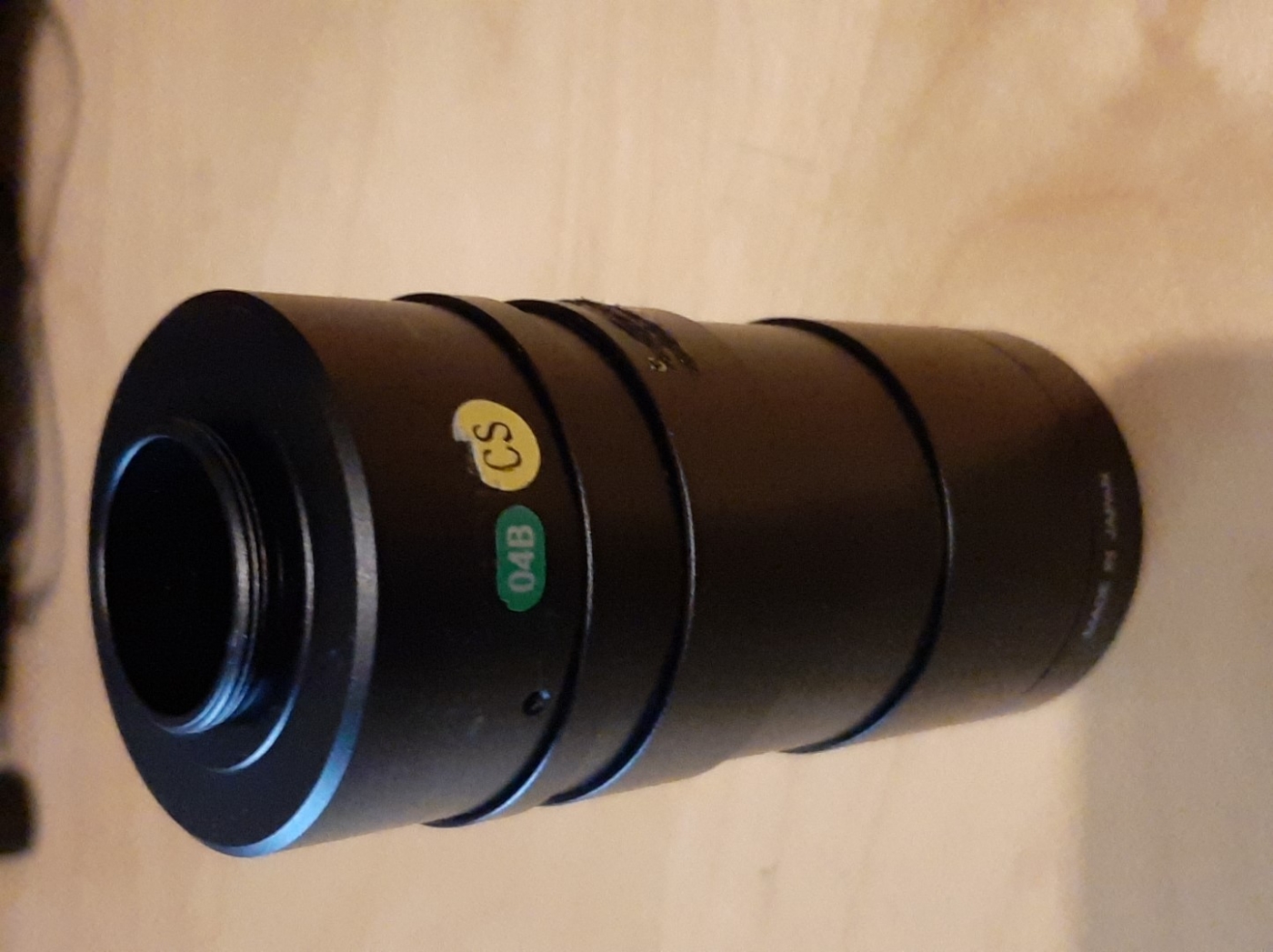

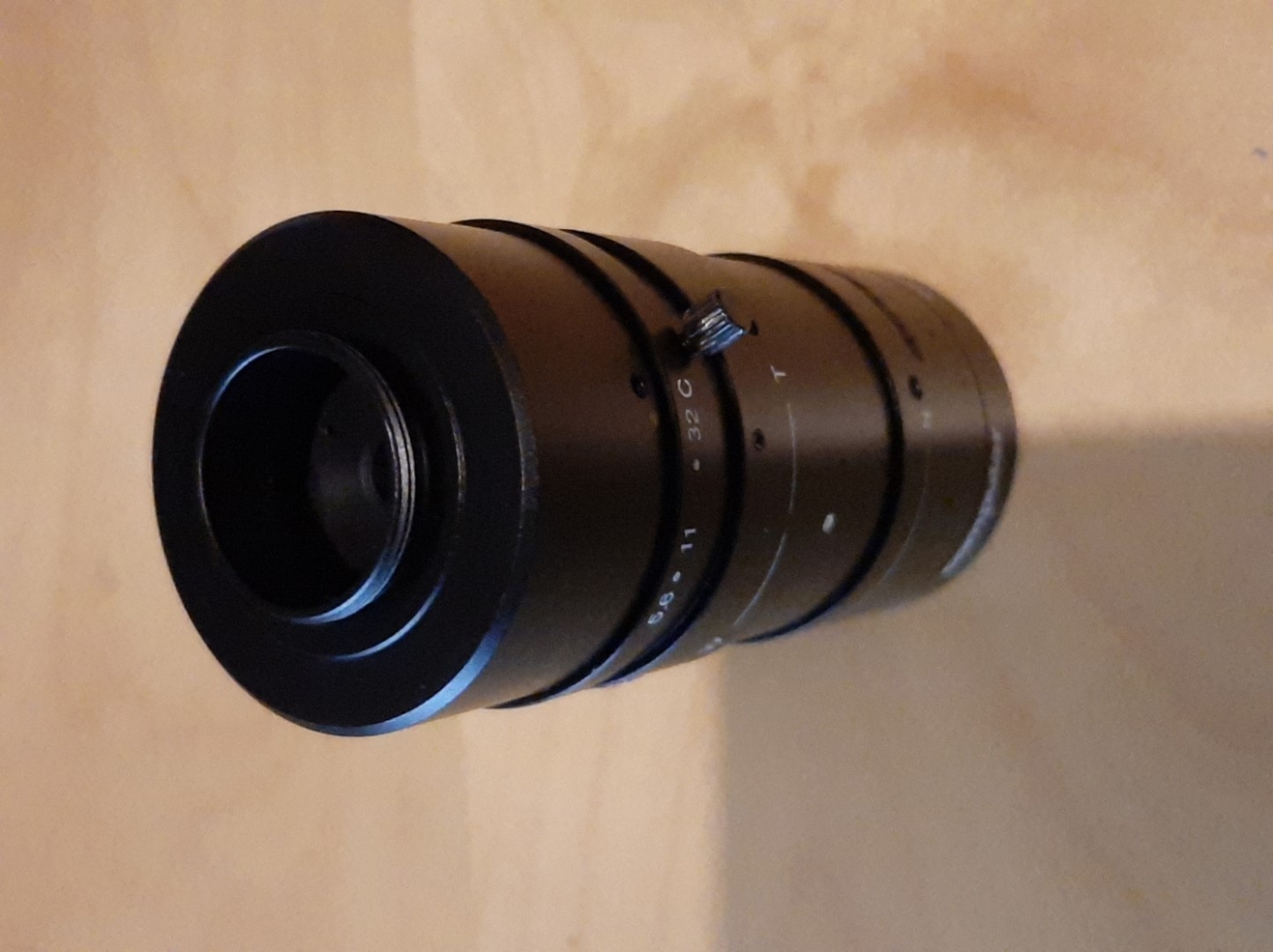

Computar MLH-10X 1/2" 13-130mm (10X) F5.6 Manual Zoom, Focus & Iris C-Mount Lens, Close-Up Type

Computar MLH-10X
Computar Macro Vision Lens Series has a dedicated design emphasis on the performance of close-up applications required in factory automation and image processing areas.

1/2″ and 2/3″ sensor compabatility.
Usable for a variety of inspection applications.
Variable working distances.
Suitable for megapixel imagers with a highly versatile 3.3x magnification type.
Compactly designed to allow use in small spaces.
Low Distortion, even in peripheral areas.
Robust design with built-in locking mechanisms for focus and iris.

MLH-10X Technical Specifications:

Product Line / Series Macro Zoom Series
Lens Type Zoom, Macro
IP Rating Not Rated
Focal Length 13 - 130 mm
ƒ/N ƒ/5.6 - ƒ/32
Image Circle Diameter 8 mm
Image Size Dimensions 6.4 mm x 4.8 mm
Imager Format 1/2″
Light Spectrum Visible
Resolution (MP) 1
Resolution (Pixel Size) Not Specified
Weight 260
Mount C-Mount
Filter Thread M46-0.75
Minimum Object Distance 150 mm
Magnification 10×
Depth Of Field Not Specified
Front Diameter 30 mm
Rear Effective Diameter 6.6 mm
Focus Control Manual
Iris Control Manual
Zoom Control Manual
Focus Range 0.15 m - 0.45 m
Back Focal Length 23.29 mm
Zoom Range 13 mm - 130 mm
Operating Temperature Range -20 to +50 °C
Dimensions 48 × 48 × 98.5 mm
AOV @ 1/2.7″ H°×V°×D° 18.0 × 13.8 × 21.6° 3.6 × 2.7 × 4.5°
AOV @ 1/4″ H°×V°×D° 10.6 × 8.0 × 13.0° 2.0 × 1.5 × 2.5°
AOV @ 1/3″ H°×V°×D° 13.8 × 10.6 × 17.0° 2.7 × 2.0 × 3.3°
Werkt perfect.
35 euro

--
A. Ouwehand
Tony Ouwehand
