Oververhitte NOVAK (Toestel of techniek)

door Rolf Zetterberg , 19-12-2025, 19:57 (3 uur en 24 minuten geleden) @ Marotick

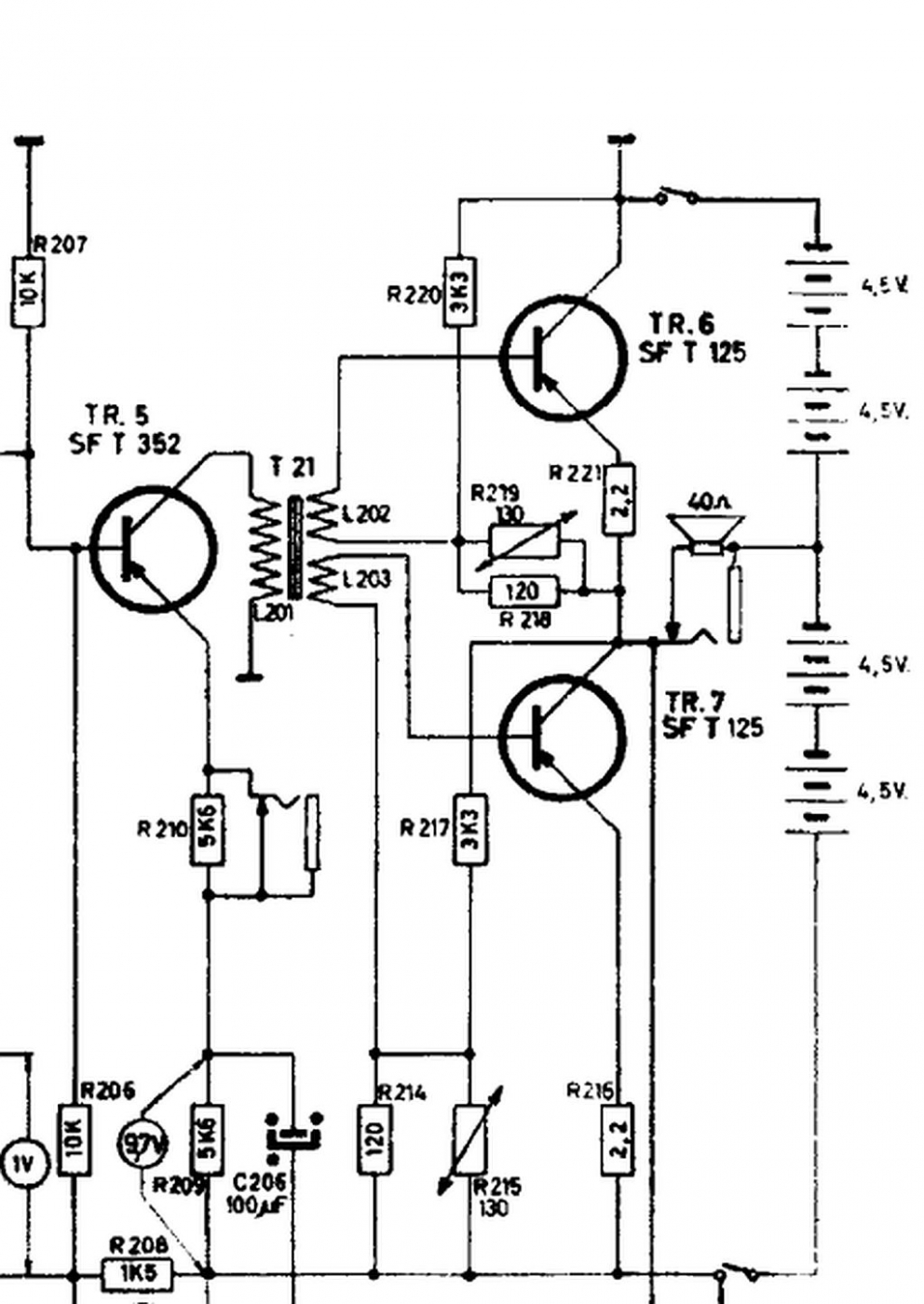

Elektrotanya has schematic to a Novak 741-a similar radio-and this snippet shows the component values.(Tip:Note the thermistors...)
Hope this helps.
